2 Actors and Use Cases

2.1 Introduction

In order to develop the data models it is necessary to understand the functions to be supported resulting from the requirements definition. These are defined in a use case model. The use case model comprises actors and use cases and these are defined below.

Actor

“An actor defines a coherent set of roles that users of the system can play when interacting with it. An actor instance can be played by either an individual or an external system”

Use case

“A use case defines a set of use-case instances, where each instance is a sequence of actions a system performs that yields an observable result of value to a particular actor”

The overall intent of the model is to support data and metadata reporting, dissemination, and exchange in the field of aggregated statistical data and related metadata. In order to achieve this, the model needs to support three fundamental aspects of this process:

• Maintenance of structural and provisioning definitions
• Data and reference metadata publishing (reporting), and consuming (using)
• Access to data, reference metadata, and structural and provisioning definitions

This document covers the first two aspects, whilst the document on the Registry logical model covers the last aspect.

2.2 Use Case Diagrams

2.2.1 Maintenance of Structural and Provisioning Definitions

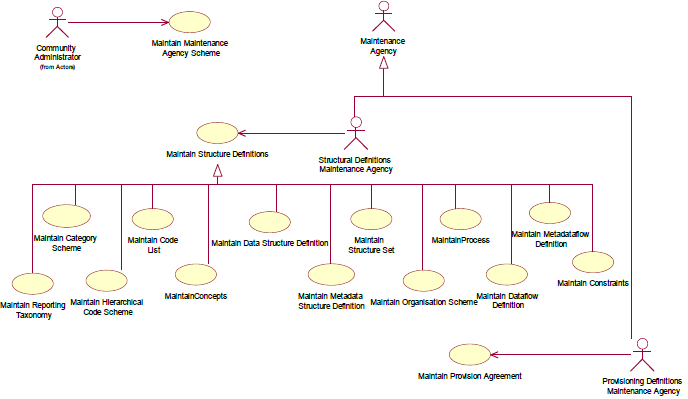

Figure 6 Use cases for maintaining data and metadata structural and provisioning definitions

2.2.1.2 Explanation of the Diagram

In order for applications to publish and consume data and reference metadata it is necessary for the structure and permitted content of the data and reference metadata to be defined and made available to the applications, as well as definitions that support the actual process of publishing and consuming. This is the responsibility of a Maintenance Agency.

All maintained artefacts are maintained by a Maintenance Agency. For convenience the Maintenance Agency actor is sub divided into two actor roles:

• maintaining structural definitions
• maintaining provisioning definitions

Whilst both these functions may be carried out by the same person, or at least by the same maintaining organization, the purpose of the definitions is different and so the roles have been differentiated: structural definitions define the format and permitted content of data and reference metadata

when reported or disseminated, whilst provisioning definitions support the process of reporting and dissemination (who reports what to whom, and when).

In a community based scenario where at least the structural definitions may be shared, it is important that the scheme of maintenance agencies is maintained by a responsible organization (called here the Community Administrator), as it is important that the Id of the Maintenance Agency is unique.

2.2.1.3 Definitions

Figure 7: Table of Actors and Use Cases for Maintenance of Structural and Provisioning Definitions

2.2.2 Publishing and Using Data and Reference Metadata

2.2.2.1 Use Cases

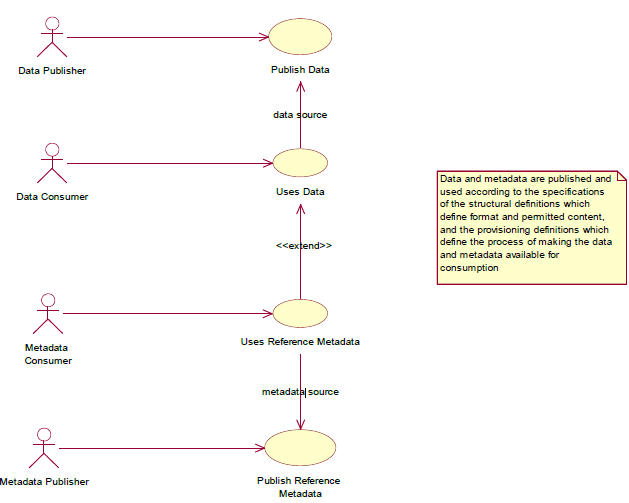

Figure 8: Actors and use cases for data and metadata publishing and consuming

2.2.2.2 Explanation of the Diagram

Note that in this diagram “publishing” data and reference metadata is deemed to be the same as “reporting” data and reference metadata. In some cases the act of making the data available fulfils both functions. Aggregated data is published and in order for the Data Publisher to do this and in order for consuming applications to process the data and reference metadata its structure must be known. Furthermore, consuming applications may also require access to reference metadata in order to present this to the Data Consumer so that the data is better understood. As with the data, the reference metadata also needs to be formatted in accordance with a maintained structure. The Data Consumer and Metadata Consumer cannot use the data or reference metadata unless it is “published” and so there is a “data source” or “metadata source” dependency between the “uses” and “publish” use cases.

In any data and reference metadata publishing and consuming scenario both the publishing and the consuming applications will need access to maintained Provisioning Definitions. These definitions may be as simple as who provides what data and reference metadata to whom, and when, or it can be more complex with constraints on the data and metadata that can be provided by a particular publisher, and, in a data sharing scenario where data and metadata are “pulled” from data sources, details of the source.

2.2.2.3 Definitions
