5 Data Structure Definition and Dataset

5.1 Introduction

The DataStructureDefiniton is the class name for a structure definition for data. Some organisations know this type of definition as a “Key Family” and so the two names are synonymous. The term Data Structure Definition (also referred to as DSD) is used in this specification.

Many of the constructs in this layer of the model inherit from the SDMX Base Layer. Therefore, it is necessary to study both the inheritance and the relationship diagrams to understand the functionality of individual packages. In simple sub models these are shown in the same diagram, but are omitted from the more complex sub models for the sake of clarity. In these cases, the inheritance diagram below shows the full inheritance tree for the classes concerned with data structure definitions.

There are very few additional classes in this sub model other than those shown in the inheritance diagram below. In other words, the SDMX Base gives most of the structure of this sub model both in terms of associations and in terms of attributes. The relationship diagrams shown in this section show clearly when these associations are inherited from the SDMX Base (see the Appendix “A Short Guide to UML in the SDMX Information Model” to see the diagrammatic notation used to depict this).

The actual SDMX Base construct from which the concrete classes inherit depends upon the requirements of the class for:

• Annotation - AnnotableArtefact
• Identification - IdentifiableArtefact
• Naming - NameableArtefact
• Versioning – VersionableArtefact
• Maintenance - MaintainableArtefact

5.2 Inheritance View

5.2.1 Class Diagram

Figure 22 Class inheritance in the Data Structure Definition and Data Set Packages

5.2.2 Explanation of the Diagram

5.2.2.1 Narrative

Those classes in the SDMX metamodel which require annotations inherit from AnnotableArtefact . These are:

• IdentifiableArtefact
• DataSet (and therefore StructureSpecificDataSet, GenericDataSet, GenericTimeSeriesDataSet StructureSpecificTimeSeriesDataSet)
• Key (and therefore SeriesKey and GroupKey)

Those classes in the SDMX metamodel which require annotations and global identity are derived from IdentifiableArtefact . These are:

• NameableArtefact
• ComponentList
• Component

Those classes in the SDMX metamodel which require annotations, global identity, multilingual name and multilingual description are derived from NameableArtefact . These are:

• VersionableArtefact
• Item

The classes in the SDMX metamodel which require annotations, global identity, multilingual name and multilingual description, and versioning are derived from VersionableArtefact . These are:

• MaintainableArtefact

Abstract classes which represent information that is maintained by Maintenance Agencies all inherit from MaintainableArtefact, they also inherit all the features of a VersionableArtefact, and are:

• StructureUsage
• Structure
• ItemScheme

All the above classes are abstract. The key to understanding the class diagrams presented in this section are the concrete classes that inherit from these abstract classes.

Those concrete classes in the SDMX Data Structure Definition and Dataset packages of the metamodel which require to be maintained by Agencies all inherit (via other abstract classes) from MaintainableArtefact, these are:

• DataflowDefinition
• DataStructureDefinition

The component structures that are lists of lists, inherit directly from Structure. A Structure contains several lists of components. The concrete class that inherits from Structure is:

• DataStructureDefinition

A DataStructureDefinition contains a list of dimensions, a list of measures and a list of attributes.

The concrete classes which inherit from ComponentList and are sub components of the DataStructureDefinition are:

• DimensionDescriptor – content is Dimension, MeasureDimension and Time Dimension
• DimensionGroupDescriptor – content is an association to Dimension, MeasureDimension, TimeDimension
• MeasureDescriptor – content is PrimaryMeasure
• AttributeDescriptor – content is DataAttribute

The classes that inherit from Component are:

• PrimaryMeasure
• DimensionComponent and thereby its sub classes of Dimension, MeasureDimension, and TimeDimension
• DataAttribute

The class that inherit from DataAttribute is:

• ReportingYearStartDay

The concrete classes identified above are the majority of the classes required to define the metamodel for the DataStructureDefinition. The diagrams and explanations in the rest of this section show how these concrete classes are related in order to support the functionality required.

5.3 Data Structure Definition – Relationship View

5.3.1 Class Diagram

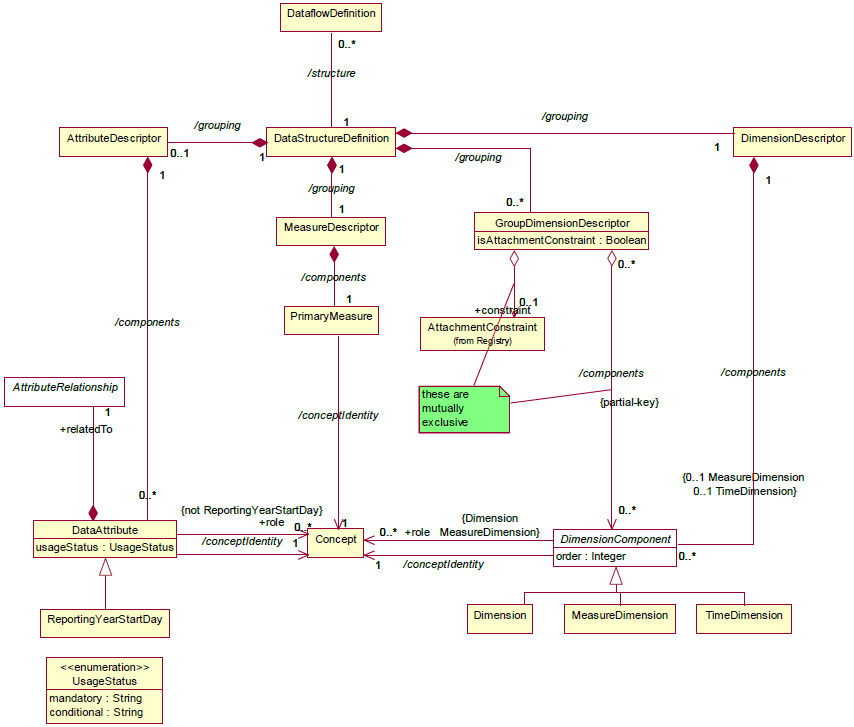

Figure 23 Relationship class diagram of the Data Structure Definition excluding representation

5.3.2 Explanation of the Diagrams

5.3.2.1 Narrative

A DataStructureDefinition defines the Dimensions, MeasureDimension, TimeDimension, DataAttributes, and PrimaryMeasure, and associated Representation that comprise the valid structure of data and related attributes that are contained in a DataSet, which is defined by a DataflowDefinition.

The DataflowDefinition may also have additional metadata attached that defines qualitative information and Constraints on the use of the DataStructureDefinition such as the sub set of Codes used in a Dimension (this is covered later in this document – see “Data Constraints and Provisioning” section 9). Each DataflowDefinition has a maximum of one DataStructureDefinition specified which defines the structure of any DataSets to be reported/disseminated.

There are three types of dimension each having a common association to Concept:

• Dimension
• MeasureDimension
• TimeDimension

Note that In the description here DimensionComponent can be oany or all of its sub classes i.e. Dimension, MeasureDimension, TimeDimension., and the term “DataAttribute” refers to both DataAttribute and its sub class ReportingYearStartDate.

The DimensionComponent, DataAttribute, and PrimaryMeasure link to the Concept that defines its name and semantic (/conceptIdentity association to Concept). The DataAttribute, Dimension, and MeasureDimension (but not TimeDimension) can optionally have a +conceptRole association with a Concept that identifies its role in the DataStructureDefinition. Therefore, the allowable roles of a Concept are maintained in a ConceptScheme. Examples of roles are: geography, entity, count, unit of measure. The use of these roles is to enable applications to process the data in a meaningful way (e.g. relating a dimension value to a mapping vector). It is expected that communities (such as the official statistics community) will harmonise these roles with their community so that data can be exchanged and shared in a meaningful way in the community.

The valid values for a DimensionComponent, PrimaryMeasure, or DataAttribute, when used in this DataStructureDefinition, are defined by the Representation. This Representation is taken from the Concept definition (coreRepresentation) unless it is overridden in this DataStructureDefinition (localRepresentation) – see Figure 23. Note that for the MeasureDimension the Representation must be a ConceptScheme and this must always be referenced from the MeasureDimension and cannot therefore be defaulted to the Representation of the Concept associated by the/conceptIdentity. Note also that TimeDimension and ReportingYearStartDate are constrained to specific FacetValueTypes

There will always be a DimensionDescriptor grouping that identifies all of the Dimension comprising the full key. Together the Dimensions specify the key of an Observation.

The DimensionComponent can optionally be grouped by multiple GroupDimensionDescriptors each of which identifies the group of Dimensions that can form a partial key. The GroupDimensionDescriptor must be identified (GroupDimensionDescriptor.id) and this is used in the GroupKey of the DataSet to declare which DataAttributes are reported at this group level in the DataSet.

There may be a maximum of one MeasureDimension specified in the DimensionDescriptor. The purpose of a MeasureDimension is to specify formally the meaning of the measures (because the PrimaryMeasure typically has a generic meaning e.g. observation value) and to enable multiple measures to be defined and reported in a StructureSpecificDataSet. Note that the MeasureDimension references a ConceptScheme as its Representation (see later) whereas a Dimension can have either an enumerated (Codelist) or non-enumerated (Facet) representation. For a MeasureDimension the Concepts in the ConceptScheme comprise the list of allowable measures. This enables the representation for each individual measure (Concept) to be declared as the coreRepresentation of the Concept, thus overriding the Representation specified for the PrimaryMeasure for the observation value of this MeasureDimension Concept.

There can be a maximum of one TimeDimension specified in the DimensionDescriptor. The TimeDimension is used to specify the Concept used to convey the time period of the observation in a data set. The TimeDimension must contain a valid representation of time and cannot be coded

The PrimaryMeasure is the observable phenomenon, and, although there can be only one PrimaryMeasure, for consistency with the ComponentList/Component pattern it is grouped by a MeasureDescriptor.

The DataAttribute defines a characteristic of data that are collected or disseminated and is grouped in the DataStructureDefinition by a single AttributeDescriptor. The DataAttribute can be specified as being mandatory, or conditional, as defined in usageStatus. The DataAttribute may play a specific role in the structure and this is specified by the +role association to the Concept that identifies its role.

A DataAttribute is specified as being +relatedTo an AttributeRelationship which defines the constructs to which the DataAttribute is to be reported present in a DataSet. The DataAttribute can be specified as being related to one of the following artefacts:

• DataSet (NoSpecifiedRelationship)
• Dimension or set of Dimensions (DimensionRelationship)
• Set of Dimensions specified by a GroupKey (GroupRelationship – this is retained for compatibility reasons – or +groupKey of the DimensionRelationship)
• Observation (PrimaryMeasureRelationship)

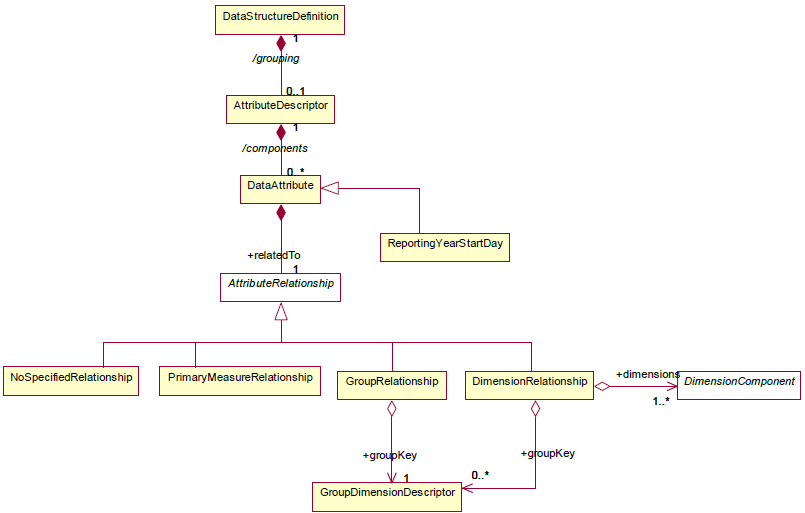

Figure 24: Attribute Attachment Defined in the Data Structure Definition

The following table details the possible relationships a DataAttribute may specify. Note that these relationships are mutually exclusive, and therefore only one of the following is possible.

Figure 25: Representation of DSD Components

Each of Dimension, MeasureDimension, TimeDimension, PrimaryMeasure, and DataAttribute can have a Representation specified (using the localRepresentation association). If this is not specified in the DataStructureDefinition then the representation specified for Concept (coreRepresentation) is used. For the MeasureDimension the representation for the individual measures is specified for the Concept in the ConceptScheme referenced by the MeasureDimension.

A DataStructureDefinition can be extended to form a derived DataStructureDefinition. This is supported in the StructureMap.

5.3.2.2 Definitions

The explanation of the classes, attributes, and associations comprising the Representation is described in the section on the SDMX Base.

5.4 Data Set – Relationship View

5.4.1 Context

A data set comprises the collection of data values and associated metadata that are collected or disseminated according to a known DataStructureDefinition.

5.4.2 Class Diagram

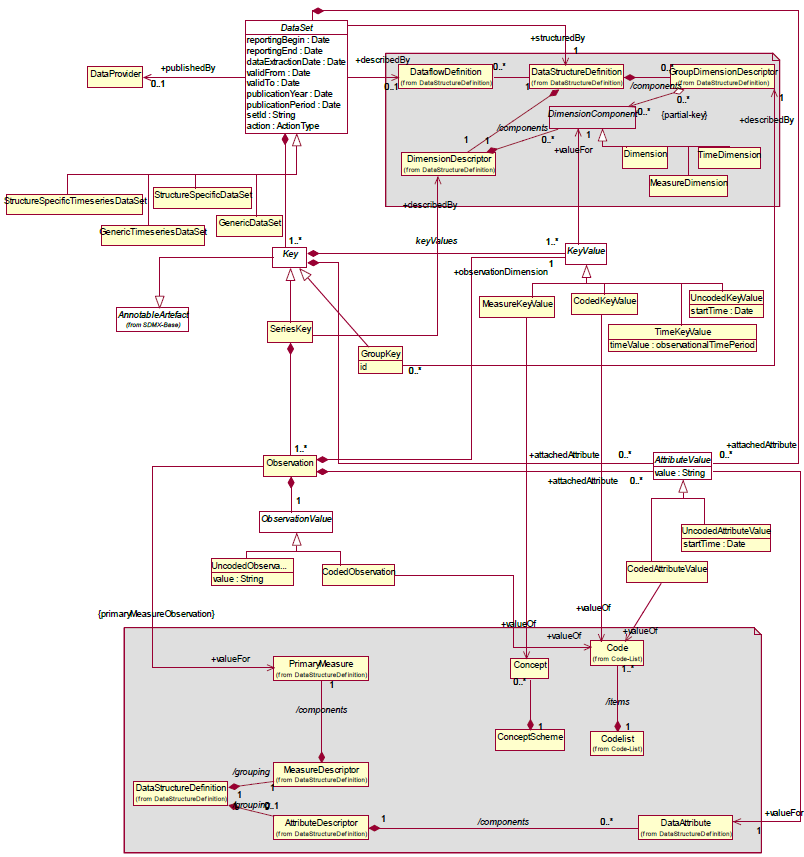

Figure 26 Class Diagram of the Data Set

5.4.3 Explanation of the Diagram

5.4.3.1 Narrative – Data Set

Note that the DataSet must conform to the DataStructureDefinition associated to the DataflowDefinition for which this DataSet is an “instance of data”. Whilst the model shows the association to the classes of the DataStructureDefinition, this is for conceptual purposes to show the link to the DataStructureDefinition. In the actual DataSet as exchanged there must, of course, be a reference to the DataStructureDefinition and optionally a DataflowDefinition, but the DataStructureDefinition is not necessarily exchanged with the data. Therefore, the DataStructureDefinition classes are shown in the grey areas, as these are not a part of the DataSet when the DataSet is exchanged. However, the structural metadata in the DataStructureDefinition can be used by an application to validate the contents of the DataSet in terms of the valid content of a KeyValue as defined by the Representation in the DataStructureDefinition.

An organisation playing the role of DataProvider can be responsible for one or more DataSet.

A DataSet can be formatted either as a generic data set (GenericDataSet, GenericTimeseriesDataSet) or a DataStructureDefinition specific data set (StructureSpecificDataSet, StructureSpecificTimeseriesDataSet). The generic data set is structured in exactly the same way no matter which DataStructureDefinition the DataSet expresses. The structured data set is structured according to one specific DataStructureDefinition. Depending on the syntax chosen for the implementation the structured data set should support better validation at the syntax level.

A DataSet is a collection of a set of Observations that share the same dimensionality, which is specified by a set of unique components (Dimension, MeasureDimension, TimeDimension) defined in the DimensionDescriptor of the DataStructureDefinition, together with associated AttributeValues that define specific characteristics about the artefact to which it is attached. - DataSet, Observation, set of Dimensions. It is structured in terms of a SeriesKey to which Observations are reported.

The Observation can be the value of the variable being measured for the Concept associated to the PrimaryMeasure in the MeasureDescriptor of the DataStructureDefinition. This is true when there is no MeasureDimension that specifies the precise meaning of each Observation. Each Observation associates an ObservationValue with a KeyValue (+observationDimension) which is the value for the “Dimension at the Observation Level”. Any dimension can be specified as being the “Dimension at the Observation Level”, and this specification is made at the level of the DataSet (i.e. it must be the same dimension for the entire DataSet).

If the “Dimension at the Observation Level” is the MeasureDimension it is possible (but not mandatory) that an Observation can be reported with an explicit identification of one or more Concept in the ConceptScheme referenced by the MeasureDimension as its Representation. In other words, the actual Concepts are explicitly stated in the Observation.

If it is required to specify explicitly that the DataSet is time series then one of GenericTimeSeriesDataSet or StructureSpecificTimeSeriesDataSet is used and the KeyValue for the +observationDimension must be a TimeKeyValue. In a GenericDataSet and a StructureSpecificDataSet it is permissible to have any dimension as the +observationDimension including the TimeDimension.

The KeyValue is a value for one of MeasureDimension, TimeDimension, or Dimension specified in the DataStructureDefinition. If it is a Dimension it can be coded (CodedKeyValue) or uncoded (UncodedKeyValue). If it is a MeasureDimension then it is MeasureKeyValue. If it is TimeDimension then it is a TimeKeyValue. The actual value that the CodedDimensionValue can take must be one of the Codes in the Codelist specified as the Representation of the Dimension in the DataStructureDefinition. The actual value that the MeasureDimensionValue can take must be a valid representation specified for the Concept in the ConceptScheme to which this MeasureDimensionValue is related (+valueFor).

The ObservationValue can be coded - this is the CodedObservation – or it can be uncoded – this is the UncodedObservation.

The GroupKey is a sub unit of the Key that has the same dimensionality as the SeriesKey, but defines a subset of the KeyValues of the SeriesKey. Its sub dimension structure is defined in the GroupDimensionDescriptor of the DataStructureDefinition identified by the same id as the GroupKey. The id identifies a “type” of group and the purpose of the

GroupKey is to report one or more AttributeValue that are contained at this group level. The GroupKey is present when the GroupDimensionDescriptor is related to the GroupRelationship in the DataStructureDefinition. There can be many types of groups in a DataSet. If the Group is related to the DimensionRelationship in the DataStructureDefinition then the AttributeValue will be reported with the appropriate dimension in the SeriesKey or Observation.

In this way each of DataSet, SeriesKey, GroupKey, and Observation can have zero or more AttributeValue that defines some metadata about the object to which it is associated. The allowable Concepts and the objects to which these metadata can be associated (attached) are defined in the DataStructureDefinition.

The AttributeValue links to the object type (DataSet, SeriesKey, GroupKey, Observation,) to which it is associated.

5.4.3.2 Definitions
