9 Structure Set and Mappings

9.1 Scope

A StructureSet allows components in one structure to be mapped to components in another structure of the same type. In this context the term “structure” is used loosely to 1786 include types of ItemScheme, types of Structure, and types of StructureUsage. The allowable structures that can be mapped, and the components that can be mapped within 1788 these structures are:

The StructureSet can contain one or more “maps” and can define related structures (via the association +relatedStructure) which group related DataStructureDefinitions, MetadataStructureDefinitions, DataflowDefinintions, MetadataflowDefinintions.

9.2 Structure Set

9.2.1 Class Diagram – Inheritance

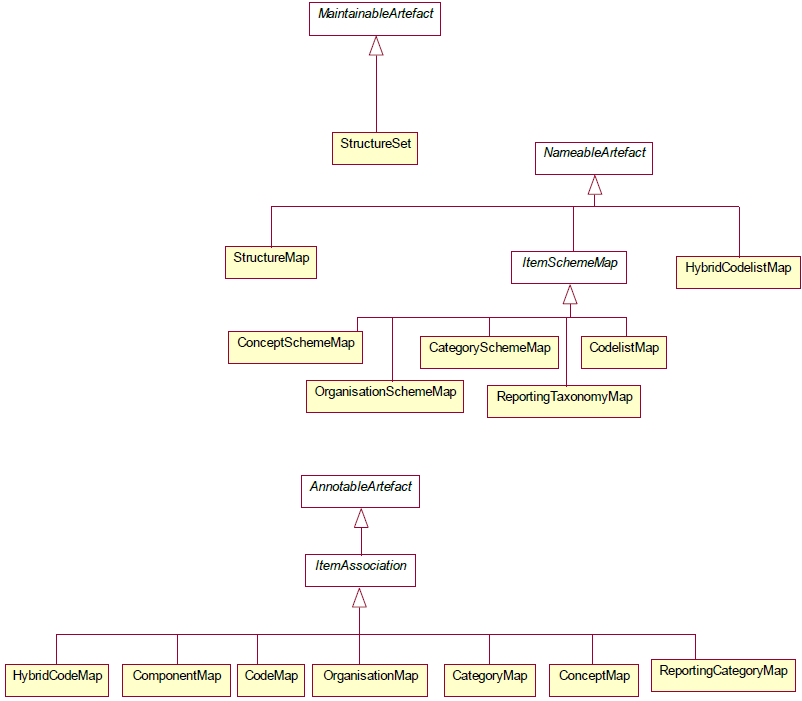

Figure 32: Inheritance Class Diagram of the Structure Set

9.2.2 Class Diagram – Relationship

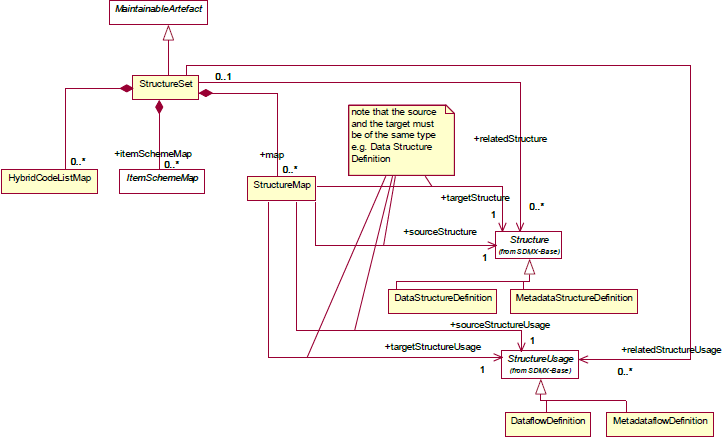

Figure 33: Relationship Class diagram of the Structure Set

9.2.3 Explanation of the Diagram

9.2.3.1 Narrative

The StructureSet is a MaintainableArtefact. It can contain:

1. A set of references to concrete sub-classes of Structure and StructureUsage (DataStructureDefinition, MetadataStructureDefinition, DataflowDefinition or MetadataflowDefinition) to indicate that a relationship exists between them. For example there may be a group of DataStructureDefinition which, together, form the definition of a cube, each DataStructureDefinition defining a part of the cube.
2. A set of StructureMaps which define which components of one structure are equivalent to those in another in a ComponentMap.
3. A set of ItemSchemeMaps which define the mapping between two concrete classes of ItemScheme, and the mapping of the Items in these schemes, such as the mapping of Codes in two Codelists..
4. A set of HybridCodelistMaps which define the mapping between a Codelist and a HierachicalCodelist.

The StructureMap references two Structures or StructureUsages. In concrete terms these references will be to DataStructureDefinitions, MetadataStructureDefinitions, DataflowDefinitions or MetadataflowDefinitions.

9.2.3.2 Definitions

9.3 Structure Map

9.3.1 Class Diagram

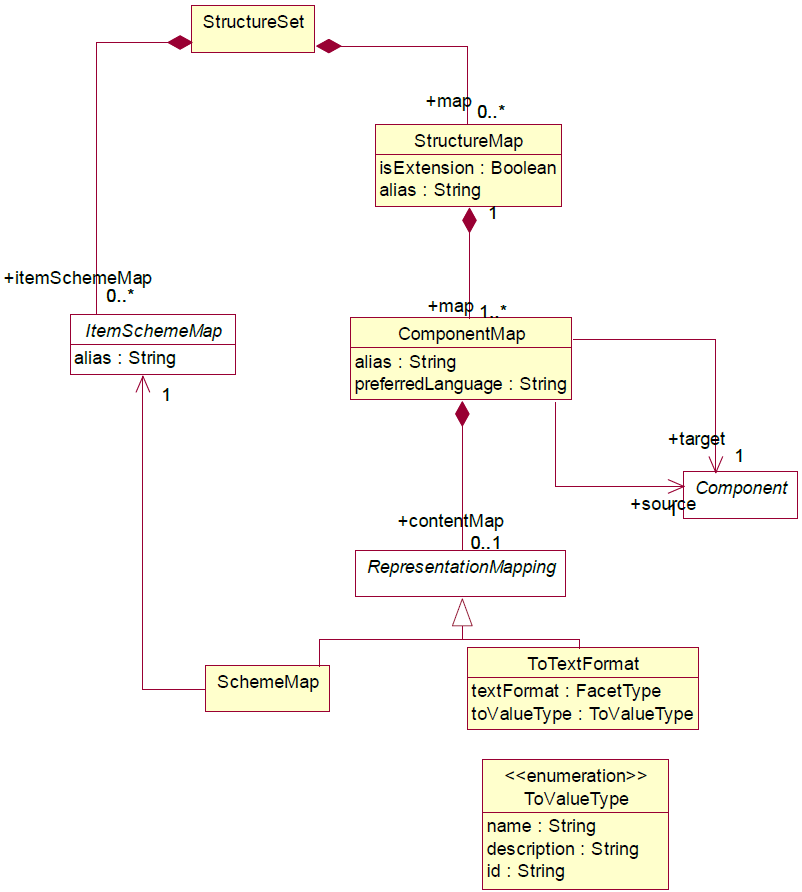

Figure 34: Class diagram of the Structure Map

9.3.2 Explanation of the Diagram

9.3.2.1 Narrative

The StructureMap contains a set of ComponentMaps, each one indicating equivalence between Components of the referenced Structure. ComponentMap has a RepresentationMapping which can be one of the concete classes of ItemSchemeMap (e.g. for a Dimension this would be a CodelistMap) or ToTextFormat which takes values: id, name, description. This instructs mapping tools to use the id, name or description of a coded component to determine equivalence with an uncoded component's value.

An example of a ComponentMap is linking the source Component that is a Dimension in the source DataStructureDefinition (identified in the StructureMap) to the equivalent target Component that is a Dimension in the target DataStructureDefinition).

9.3.2.2 Definitions

9.4 Item Scheme Map

9.4.1 Context

The ItemSchemeMap is used to associate the Items in two different ItemSchemes. This is a generic mechanism that can be used to map Items. Specific models exist for mapping schemes where there is a semantic equivalence between Items in the ItemScheme. The model supports the mapping of any two ItemSchemes of the same type. These are:

• ConceptScheme
• CategoryScheme
• OrganisationScheme
• Codelist
• ReportingTaxonomy

9.4.2 Class Diagram

Figure 35: Class diagram of the Item Scheme Map

9.4.3 Explanation of the Diagram

9.4.3.1 Narrative

Both the ItemSchemeMap and the ItemAssociation inherit from NameableArtefact.

Each of ConceptSchemeMap, CategorySchemeMap, CodelistMap and OrganisationSchemeMap, ReportingTaxonomyMap provides a mechanism for specifying semantic equivalence between the items (Concept, Category,Code, Organisation, ReportingCategory) in the scheme. Note that any type of OrganisationScheme and Organisation can be mapped (e.g. an Agency in an AgencyScheme can be mapped to an OrganisationUnit in an OrganisationUnitScheme).

Each scheme map identifies a +source and +target scheme whose content is to be mapped. Note that many schemes can be joined together via a set of pair-wise mappings. The ConceptMap, CategoryMap, CodelistMap, OrganisationMap,and ReportingTaxonomyMap denotes which Concepts, Categorys, Codes, Organisations, and ReportingCategorys are semantically equivalent and a shared alias can be specified to refer to a set of mapped concepts to facilitate querying.

9.4.3.2 Definitions

9.5 Hybrid Codelist Map

9.5.1 Class Diagram

Figure 36: Class diagram of the Hybrid Codelist Map

9.5.2 Explanation of the Diagram

9.5.2.1 Narrative

The HybridCodelistMap maps the content of a Codelist and a HierachicalCodelist. It contains a mapping of the codes in the two schemes (HybridCodeMap). The HybridCodeMap maps either a Code or HierachicalCode to a Code or HierarchicalCode. The HierarchicalCode is identified by a combination of the Hierarchy and the HierarchicalCode.

9.5.2.2 Definitions
