10 Constraints

Last modified by Helena on 2025/07/20 12:45

Contents

10.1 Introduction

A Constraint is a Maintainable Artefact that can be associated to one or more of:

Note that regardless of the Artefact to which the Constraint is associated, it is constraining the contents of code lists in the DSD to which the constrained object is related. This does not apply, of course, to a Metadata/Data Provider as the latter can be associated, via the (Metadata) Provision Agreement, to many MSDs/DSDs. Hence the reason for the restriction on the type of Constraint that can be attached to a Metadata/Data Provider.

10.2 Types of Constraint

The Constraint can be of one of two types:

The Data Constraint may serve two different perspectives, depending on the way the latter is retrieved. These are:

The former (allowed – also valid for Metadata Constraint) is specified by a data or metadata provider or consumer for sharing the allowed data and metadata in the context of their DSD or MSD exchanges, e.g., only Monthly data for a specific Dataflow. The latter (actual) is a dynamic Constraint in response to an availability request (only possible for data).

For Actual Data Constraint, there a few characteristics that are worth noting:

  • They can only be retrieved by the availability requests (as specified in the REST API).
  • They depend on the data available in an SDMX Web Service and thus they can only be dynamically generated according to that data.
  • Although they are Maintainable Artefacts, they cannot change independently of data; thus, they cannot be versioned (they are non-versioned, as explained in section 14).
  • Their identifier may also be dynamically generated and thus there is no REST resource based on their identification.

10.3 Rules for a Constraint

10.3.1 Scope of a Constraint

A Constraint is used specify the content of a data or metadata source in terms of the component values or the keys.

In terms of data the components are:

In terms of reference metadata the components are:

For a Constraint based on a DSD the Constraint can reference one or more of:

For a Constraint based on an MSD the Constraint can reference one or more of:

Furthermore, there can be more than one Constraint specified for a specific object e.g., more than one Constraint for a specific DSD.

In view of the flexibility of constraints attachment, clear rules on their usage are required. These are elaborated below.

10.3.2 Multiple Constraints

There can be many Constraint for any Constrainable Artefact (e.g., DSD), subject to the following restrictions:

10.3.2.1 Cube Region

A Constraint can contain multiple Member Selections (e.g., Dimensions).

  • A specific Member Selection (e.g., Dimension FREQ) can only be contained in one Cube Region for any one attached object (e.g., a specific DSD or specific Dataflow).
  • Component values within a Member Selection may define a validity period. Otherwise, the value is valid for the whole validity of the Cube Region.
  • For partial reference resolution purposes (as per the SDMX REST API), the latest non-draft Constraint must be considered.
  • A Member Selection may include wildcarding of values (using character ‘%’ to represent zero or more occurrences of any character), as well as cascading through hierarchic structures (e.g., parents in Codelist), or localised values (e.g., text for English only). Lack of locale means any language may match. Cascading values are mutual exclusive to localised values, as the former refer to coded values, while the latter refer to uncoded values.
  • Any values included in a Member Selection for Components with an array data type (i.e., Measures, Attributes or Metadata Attributes), will be applied as single values and will not be assessed combined with other values to match all possible array values. For example, including the Code ‘A’ for an Attribute will allow any instance of the Attribute that includes ‘A’, like [‘A’, ‘B’] or [‘A’, ‘C’, ‘D’]. Similarly, if Code ‘A’ was excluded, all those arrays of values would also be excluded.

10.3.2.2 Key Set

Key Sets will be processed in the order they appear in the Constraint and wildcards can be used (e.g., any key position not reference explicitly is deemed to be "all values").

As the Key Sets can be "included" or "excluded" it is recommended that Key Sets with wildcards are declared before KeySets with specific series keys. This will minimize the risk that keys are inadvertently included or excluded.

In addition, Attribute, Measure and Metadata Attribute constraints may accompany KeySets, in order to specify the allowed values per Key. Those are expressed following the rules for Cube Regions, as explained above.

Finally, a validity period may be specified per Key.

10.3.3 Inheritance of a Constraint

10.3.3.1 Attachment levels of a Constraint

There are three levels of Constraint attachment for which these inheritance rules apply:

• DSD/MSD – top level o Dataflow/Metadataflow – second level

▪ Provision Agreement – third level

Note that these rules do not apply to the Simple Datasource or Queryable Datasource; the Constraint(s) attached to these artefacts are resolved for this artefact only and do not take into account Constraints attached to other artefacts (e.g., Provision Agreement, Dataflow, DSD).

It is not necessary for a Constraint to be attached to a higher level artefact. e.g., it is valid to have a Constraint for a Provision Agreement where there are no constraints attached the relevant dataflow or DSD.

10.3.3.2 Cascade rules for processing Constraints

The processing of the constraint on either Dataflow/Metadataflow or Provision Agreement must take into account the constraints declared at higher levels. The rules for the lower-level constraints (attached to Dataflow/ Metadataflow and Provision Agreement) are detailed below.

Note that there can be a situation where a constraint is specified at a lower level before a constraint is specified at a higher level. Therefore, it is possible that a higher-level constraint makes a lower-level constraint invalid. SDMX makes no rules on how such a conflict should be handled when processing the constraint for attachment. However, the cascade rules on evaluating constraints for usage are clear – the higher-level constraint takes precedence in any conflicts that result in a less restrictive specification at the lower level.

10.3.3.3 Cube Region

It is not necessary to have a Constraint on the higher-level artefact (e.g., DSD referenced by the Dataflow), but if there is such a Constraint at the higher level(s) then:

Note that it is possible for a Constraint at a higher level to constrain, say, four Dimensions in a single Constraint, and a Constraint at a lower level to constrain the same four in two, three, or four Constraint.

10.3.3.4 Key Set

It is not necessary to have a Constraint on the higher-level artefact (e.g., DSD referenced by the Dataflow), but if there is such a Constraint at the higher level(s) then:

Note that a Key in a Key Set can have wildcarded Components. For instance, the Constraint may simply constrain the Dimension FREQ to "A", and all keys where the FREQ="A" are therefore valid.

The following logic explains how the inheritance mechanism works. Note that this is conceptual logic and actual systems may differ in the way this is implemented.

    1. Determine all possible keys that are valid at the higher level.
    2. These keys are deemed to be inherited by the lower-level constrained object, subject to the Constraint specified at the lower level.
    3. Determine all possible keys that are possible using the Constraint specified at the lower level.
    4. At the lower level inherit all keys that match with the higher-level Constraint.
    5. If there are keys in the lower-level Constraint that are not inherited then the key is invalid (i.e., it is less restrictive).

10.3.4 Constraints Examples

10.3.4.1 Data Constraint and Cascading

The following scenario is used.

A DSD contains the following Dimensions:

  • GEO – Geography
  • SEX – Sex
  • AGE – Age
  • CAS – Current Activity Status

In the DSD, common code lists are used and the requirement is to restrict these at various levels to specify the actual code that are valid for the object to which the Constraint is attached.

SDMX 3-0-0 SECTION 6 FINAL-1.0_en_77bea5e.png

Figure 20: Example Scenario for Constraints

Constraints are declared as follows:

SDMX 3-0-0 SECTION 6 FINAL-1.0_en_7c36c475.png

Figure 21: Example Constraints

Notes:

AGE is constrained for the DSD and is further restricted for the Dataflow CENSUS_CUBE1.

  • The same Constraint applies to both Provision Agreements.

The cascade rules elaborated above result as follows:

DSD

Dataflow CENSUS_CUBE1

Dataflow CENSUS_CUBE2

Provision Agreement CENSUS_CUBE1_IT

Provision Agreement CENSUS_CUBE2_IT

The Constraint are defined as follows:

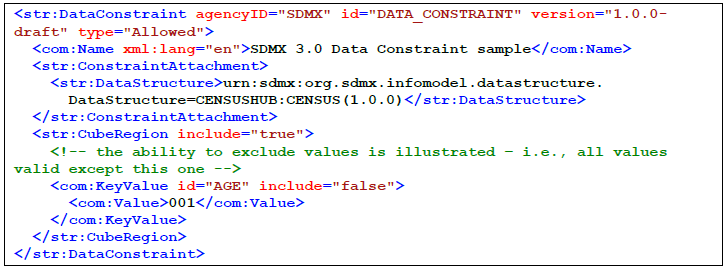

DSD Constraint

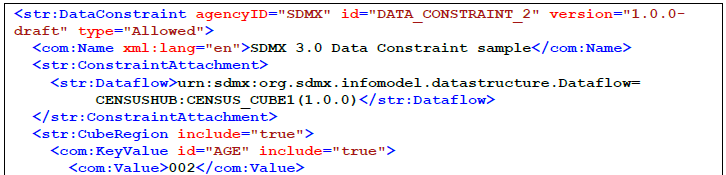

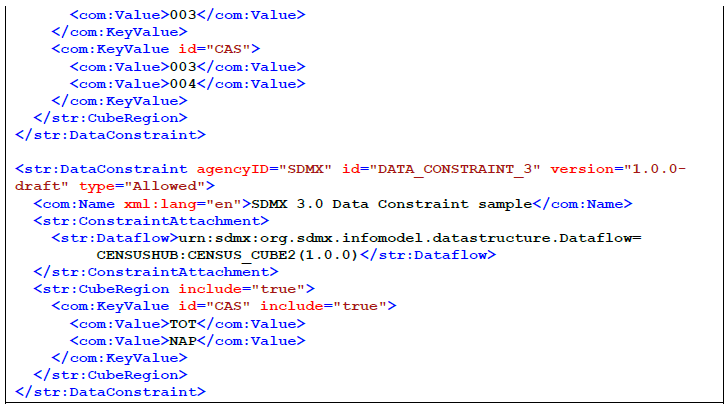

Dataflow Constraints

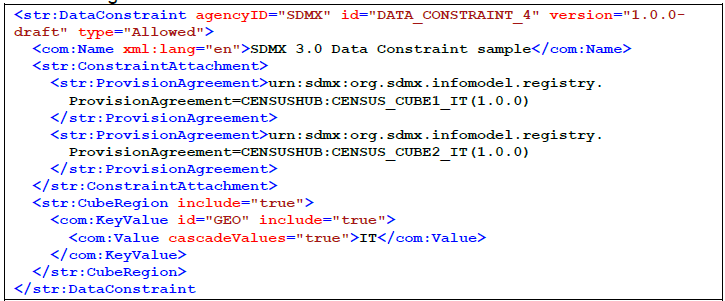

Provision Agreement Constraints


10.3.4.2 Combination of Constraints

The possible combination of constraining terms are explained in this section, following a few examples.

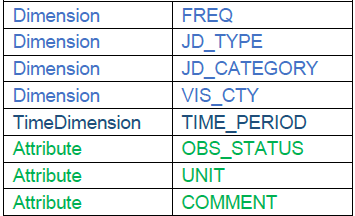

Let’s assume a DSD with the following Components:



On the above, let’s assume the following use cases with their constraining requirements:

10.3.4.2.1 Use Case 1: A Constraint on allowed values for some Dimensions

R1: Allow monthly and quarterly data
R2: Allow Mexico for vis-à-vis country

This is expressed with the following CubeRegion:


10.3.4.2.2 Use Case 2: A Constraint on allowed combinations for some Dimensions

R1: Allow monthly data for Germany
R2: Allow quarterly data for Mexico

This is expressed with the following DataKeySet:


10.3.4.2.3 Use Case 3: A Constraint on allowed values for some Dimensions combined with allowed values for some Attributes

R1: Allow monthly and quarterly data
R2: Allow Mexico for vis-à-vis country
R3: Allow present for status

This may be expressed with the following CubeRegion:


10.3.4.2.4 Use Case 4: A Constraint on allowed combinations for some

Dimensions combined with specific Attribute values

R1: Allow monthly data, for Germany, with unit euro
R2: Allow quarterly data, for Mexico, with unit usd

This is may be expressed with the following DataKeySet:



10.3.4.2.5 Use Case 5: A Constraint on allowed values for some Dimensions together with some combination of Dimension values

R1: For annually and quarterly data, for Mexico and Germany, only A status is allowed
R2: For monthly data, for Mexico and Germany, only F status is allowed

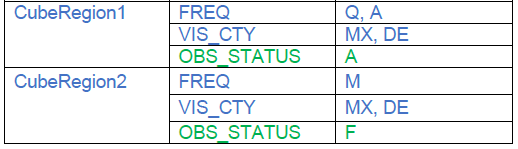

Considering the above examples, the following CubeRegions would be created:


The problem with this approach is that according to the business rule for Constraint, only one should be specified per Component. Thus, if a software would perform some conflict resolution would end up with empty sets for FREQ and OBS_STATUS (as they do not share any values).

Nevertheless, there is a much easier approach to that; this is the cascading mechanism of Constraint (as shown in 10.3.4.1). Hence, these rules would be expressed into two levels of Constraint, e.g., DSD and Dataflows:

DSD CubeRegion:


Dataflow1 CubeRegion:


Dataflow2 CubeRegion:

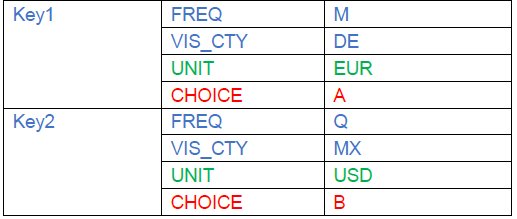

10.3.4.2.6 Use case 6: A Constraint on allowed values for some Dimensions combined with allowed values for Measures

R1: Allow monthly data, for Germany, with unit euro, and measure choice is 'A'
R2: Allow quarterly data, for Mexico, with unit usd, and measure choice is 'B' This is may be expressed with the following DataKeySet:


10.3.4.2.7 Use Case 7: A Constraint with wildcards for Codes and removePrefix property

For this example, we assume that the VIS_CTY representation has been prefixed with prefix ‘AREA_’. In this Constraint, we need to remove the prefix.

R1: Allow monthly and quarterly data
R2: Allow vis-à-vis countries that start with M
R3: Remove the prefix ‘AREA_’

This may be expressed with the following CubeRegion:


10.3.4.2.8 Use Case 8: A Constraint with multilingual support on Attributes

R1: Allow monthly and quarterly data
R2: Allow Mexico for vis-à-vis country
R3: Allow a comment, in English, which includes the term adjusted for status

This may be expressed with the following CubeRegion:


10.3.4.2.9 Use Case 9: A Constraint on allowed values for Dimensions combined with allowed values for Metadata Attributes

R1: Allow monthly and quarterly data
R2: Allow Mexico for vis-à-vis country
R3: Allow John Doe for contact

This may be expressed with the following CubeRegion:


10.3.4.3 Other constraining terms

Beyond the cube regions and keysets, there is one more constraining term, i.e., the ReleaseCalendar.

The ReleaseCalendar is the only term that does not apply on Components; it specifies the schedule of publication or reporting of the dataset or metadataset.

For example, the ReleaseCalendar for Provider BIS, is specified in the three following terms:

  • Periodicity: how often data should be reported, e.g., monthly
  • Offset: the number of days between the 1st of January and the first release of data, e.g., 10 days
  • Tolerance: the maximum allowed of days that data may be considered, without being considered as late, e.g., 5 days

With the above terms, BIS would need to report data between the 10th and 15th of every month.

NOTE: The SDMX 2.1 constraining term ReferencePeriod has been deprecated in SDMX 3.0; thus, the TimeDimension and any Dimension with a time Representation can be constrained within a CubeRegion or MetadataTargetRegion, using the TimeRangeValue.
