6 Codelist

As of SDMX 3.0, Codelists have gained new features like geospatial properties, inheritance and extension. Moreover, hierarchies (used to build complex hierarchies of one or more Codelists) are now linked to other Artefacts in order to facilitate the formers' usage in dissemination or other scenarios. For all geospatial related features, as well as the new Geographical Codelist, please refer to section 7.

6.1 Codelist extension and discriminated unions

A Codelist can extend one or more Codelists. Codelist extensions are defined as a list of references to parent Codelists. The order of the references is important when it comes to conflict resolution on Code Ids. When two Codelists have the same Code Id, the Codelist referenced later takes priority. In the example below, the code 'A', exists in both CL_INDICATOR and CL_SERIES. The Codelist CL_INDICATOR_EX will contain the code 'A' from CL_SERIES as this was the second Codelist to be referenced in the sequence of references.

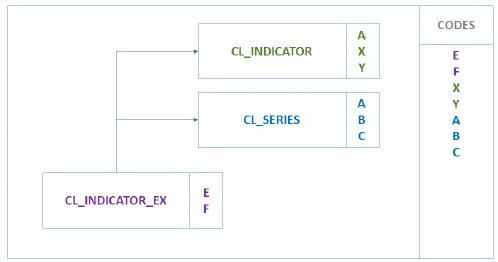

Figure 7: Codelist extension

As the extended Codelist, CL_INDICATOR_EX in this example, may also define its own Codes, these take the ultimate priority over any referenced Codelists. If CL_INDICATOR_EX defines Code 'A', then this will be used instead of Code 'A' from CL_INDICATOR and CL_SERIES, as shown below:

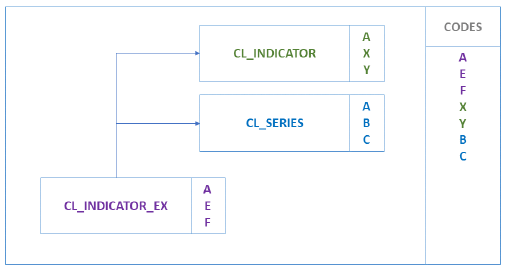

Figure 8: Codelist extension with new Codes

6.1.1 Prefixing Code Ids

A reference to a Codelist may contain a prefix. If a prefix is provided, this prefix will be applied to all the codes in the Codelist before they are imported into the extended Codelist. Following the above example if the CL_SERIES reference includes a prefix of 'SER_' then the resulting Codelist would contain 7 codes, A, E, F, X, Y, SER_A, SER_B, SER_C.

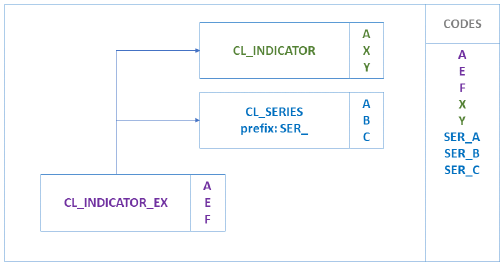

Figure 9: Extended Codelist with prefix

6.1.2 Including / Excluding Specific Codes

The default behaviour of extending another Codelist is to import all Codes. However, an explicit list of Code Ids may be provided for explicit inclusion or exclusion. This list of Ids may contain wildcards using the same notation as Constraints (%). Cascading values is also supported using the same syntax as the Constraints. The list of Ids is either a list of excluded items, or included items, exclusion and inclusion is not supported against a single Codelist.

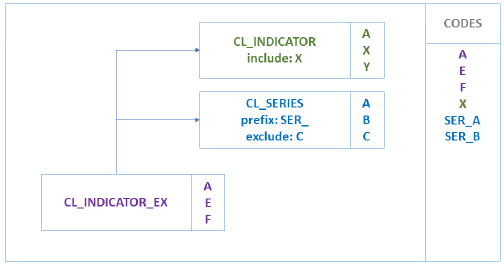

Figure 10: Extended Codelist with include/exclude terms

6.1.3 Parent Ids

Parent Ids are preserved in the extended Codelist if they can be.  If a Code is inherited but its parent Code is excluded, then the Code's parent Id will be removed. This rule is also true if the parent Code is excluded because it is overwritten by another Code with the same Id from another Codelist.  This ensures the parent Ids do not inadvertently link to Codes originating from different Codelists, and also prevents circular references from occurring.

Figure 11: Parent Code included

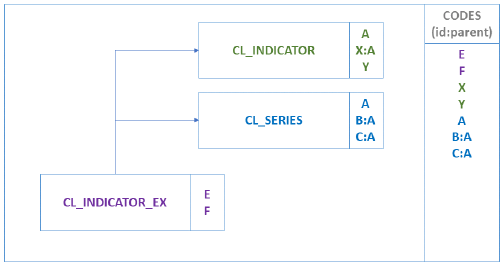

Figure 12: Parent Code from different extended Codelist

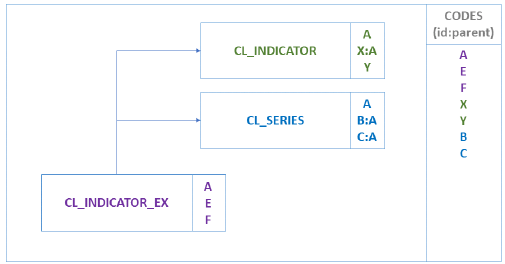

Figure 13: Parent Code overridden by local Code

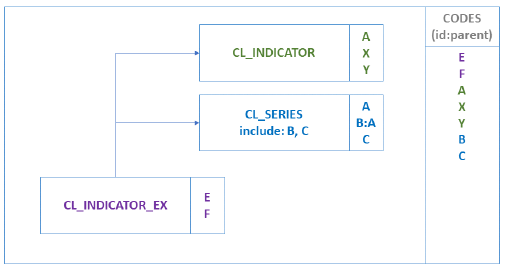

Figure 14: Parent Code not included

6.1.4 Discriminated Unions

A common use case solved in SDMX 3.0 is that of discriminated unions, i.e., dealing with classification or breakdown "variants" which are all valid but mutually exclusive. For example, there are many versions of the international classification for economic activities "ISIC". In SDMX, classifications are enumerated concepts, normally modelled as dimensions corresponding to breakdowns. Each enumerated concept is associated to one and only one code list.

To support this use case, the following have to be considered:

• Independent Codelists per variant: Having each variant in a separate Codelist facilitates the maintenance and allows keeping the original codes, even if different versions of the classification have the same code for different concepts. For example, in ISIC Rev. 4 the code "A" represents "Agriculture, forestry and fishing", while in ISIC 3.1 "A" means "Agriculture, hunting and forestry".
• Prefixing Code Ids: When extending Codelists, the reference to an extension Codelist may contain a prefix. If a prefix is provided, this prefix will be applied to all the codes in the Codelist before they are imported into the extended Codelist.  In this case, the reference to CL_ISIC4 includes a prefix of "ISIC4_" and the reference to ISIC3 includes "ISIC3_", so the resulting Codelist will have no conflict for the "A" items which will become "ISIC3_A" and "ISIC4_A".
• Including / Excluding Specific Codes: As explained above, there will be independent DFs/PAs with specific Constraint attached, in order to keep the proper items according to the variant in use by each data provider.

For example, assuming:

• DSD DSD_EXDU contains a Dimension: ACTIVITY enumerated by CL_ACTIVITY.
• CL_ACTIVITY has no items and is extended by:
• CL_ISIC4, prefix="ISIC4_"
• CL_ISIC3, prefix="ISIC3_"
• CL_NACE2, prefix="NACE2_"
• CL_AGGR, prefix="AGGR_"
• Dataflow DF1, with a DataConstraint CC_NACE2, CubeRegion for ACTIVITY and Value="NACE2_%"
• Dataflow DF2, with a DataConstraint CC_ISIC3, CubeRegion for ACTIVITY and Value="ISIC3_%"
• Dataflow DF3, with a DataConstraint CC_ISIC4, CubeRegion for ACTIVITY and Value="ISIC4_%", Value="AGGR_TOTAL", Value="AGGR_Z"

The discriminated unions are achieved, by requesting any of the above Dataflows with references="all" and detail="referencepartial": returns CL_ACTIVITY with the corresponding extensions resolved and the DataConstraint, referencing the Dataflow, applied. Thus, the CL_ACTIVITY will only include Codes prefixed according to the Dataflow, i.e.:

• Prefix "NACE2_%" for DF1;
• Prefix "ISIC3_%" for DF2;
• Prefix "ISIC4_%" for DF3; note that Codes "AGGR_TOTAL" and "AGGR_Z" are also included in this case.

6.2 Linking Hierarchies

To facilitate the usage of Hierarchy within other SDMX Artefacts, the HierarchyAssociation is defined to link any Hierarchy with any IdentifiableArtefact within a specific context.

The HierarchyAssociation is a simple Artefact operating like a Categorisation. The former specifies three references:

• The link to a Hierarchy;
• The link to the IdentifiableArtefact that the Hierarchy is linked (e.g., a Dimension);
• The link to the context that the linking is taking place (e.g., a DSD).

As an example, let’s assume:

• A DSD with a COUNTRY Dimension that uses Codelist CL_AREA as representation.
• A Hierarchy (e.g., EU_COUNTRIES) that builds a hierarchy for the CL_AREA Codelist.
• In order to use this Hierarchy for data of a Dataflow (e.g., EU_INDICATORS), we need to build the following HierarchyAssociation:
• Links to the Hierarchy EU_COUNTRIES (what is associated?)
• Links to the Dimension COUNTRY (where is it associated?)
• Links to the context: Dataflow EU_INDICATORS (when is it associated?)
• The above are also shown in the schematic below:

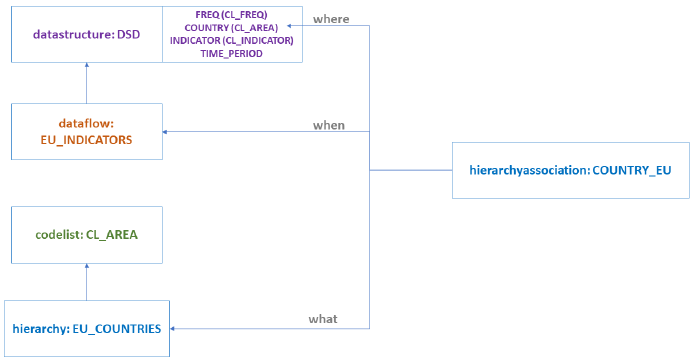

Figure 15: Hierarchy Association
